If you are learning atrial fibrillation ECG interpretation, do not start by hunting for one textbook feature. Start with rhythm, atrial activity and the ventricular response. This visual guide shows what atrial fibrillation looks like, how it differs from sinus rhythm, atrial flutter and multifocal atrial tachycardia, and how to describe it clearly.
Fast memory rule: AF is an atrial rhythm problem with an irregular ventricular response. Prove the pattern; do not diagnose it from the rate alone.
First: compare with normal sinus rhythm
In sinus rhythm, atrial depolarisation is organised. You should be able to follow consistent P waves and their relationship with the QRS complexes.
Use this normal trace as your baseline. Before calling another rhythm AF, ask what has changed: Are organised P waves still present? Are the R-R intervals regular? Is there still a stable P-to-QRS relationship?
What does atrial fibrillation look like on ECG?
The core ECG pattern is:
- no consistent organised sinus P waves
- irregularly irregular R-R intervals when AV conduction is variable
- continuously changing atrial electrical activity rather than a repeating sinus P-wave pattern
- ventricular rate that may be slow, controlled or rapid
The ventricular rate does not define AF. A patient can have atrial fibrillation without a rapid ventricular response.
How to read this AF example
Ignore the computer label initially. Follow the QRS complexes across a long rhythm strip and compare successive R-R intervals. Then look between QRS complexes for a consistent repeating P wave. The combination of absent organised sinus P waves and an irregularly irregular ventricular response is the key visual pattern.
NICE recommends a 12-lead ECG to make the diagnosis of atrial fibrillation when an irregular pulse is detected in someone with suspected AF. Read NICE NG196.
[[challenge:Which feature most strongly supports atrial fibrillation rather than sinus tachycardia? | A fast ventricular rate;;Irregularly irregular R-R intervals with no consistent organised P waves;;A narrow QRS complex;;T-wave inversion | 2 | Rate alone does not diagnose AF. The combination of absent consistent organised sinus P waves and an irregularly irregular ventricular response is the key pattern.]]\n\n## Atrial fibrillation with rapid ventricular response
Now compare the previous trace with a source-labelled example of rapid atrial fibrillation.
A useful interpretation sequence is:
- confirm that the rhythm is irregular
- look for organised P waves
- calculate the ventricular rate
- assess QRS width and morphology
- inspect ST-T segments in clinical context
- decide whether the patient has adverse clinical features
Do not use “AF with RVR” as a substitute for a full ECG description. The rate is one part of the tracing.
AF versus atrial flutter
Atrial flutter can be mistaken for atrial fibrillation, particularly when AV conduction varies. The important difference is atrial organisation. Flutter has organised repetitive atrial activity; AF does not have a consistent organised atrial waveform.
This example shows atrial flutter with 2:1 conduction:
With fixed 2:1 conduction, the ventricular rhythm may look surprisingly regular. That is exactly why “fast rhythm = AF” is unsafe pattern recognition. Search for the atrial activity and its relationship with the QRS complexes.
[[challenge:A regular narrow-complex rhythm at about 150 bpm has repetitive atrial activity between QRS complexes. Which alternative should you actively consider? | Atrial flutter with 2:1 conduction;;Atrial fibrillation;;Sinus arrhythmia;;Ventricular fibrillation | 1 | Atrial flutter with fixed 2:1 AV conduction can produce a surprisingly regular ventricular rhythm. Look for organised repetitive atrial activity rather than assuming every fast rhythm is AF.]]\n\n## AF versus multifocal atrial tachycardia

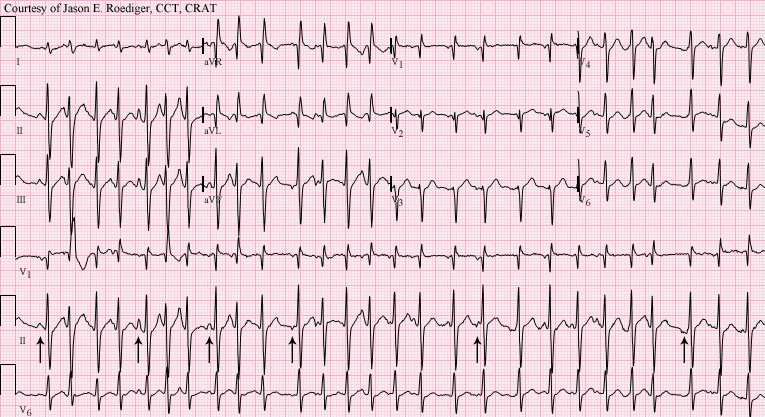

Multifocal atrial tachycardia can also be irregularly irregular. Unlike AF, however, discrete P waves are present, with multiple P-wave morphologies and varying PR intervals.
This is a high-value comparison because both rhythms can look chaotic at first glance. Slow down and ask whether you can identify discrete atrial depolarisations.
AF versus sinus arrhythmia
Sinus arrhythmia can produce varying R-R intervals, but the rhythm remains sinus: there are organised sinus P waves with a consistent relationship to the QRS complexes.
The practical lesson is simple: irregular does not automatically mean atrial fibrillation.
A five-question AF ECG check
When you suspect AF, ask:
- Regular or irregular?
- Can I identify consistent sinus P waves?
- What is the ventricular rate?
- Is the QRS narrow or broad?
- Is there another ECG abnormality that changes the clinical picture?
Then describe what you actually see before naming the rhythm.
Clinical presentation
Atrial fibrillation may be found incidentally or during assessment of symptoms such as palpitations, breathlessness, dizziness, syncope or chest discomfort. It is also clinically important because of its association with thromboembolic stroke.
NICE recommends manual pulse palpation when AF is suspected and a 12-lead ECG when an irregular pulse is detected. If paroxysmal AF is suspected but not captured on the 12-lead ECG, ambulatory monitoring may be required, with monitoring duration guided by symptom frequency.
What happens after AF is identified?
ECG recognition is only the beginning. Clinical assessment should establish haemodynamic stability, symptoms, possible triggers, duration where known, comorbidities and stroke/bleeding risk.
Longer-term management may involve rate control, rhythm control and stroke prevention. The appropriate strategy depends on the individual patient and should follow current guidance rather than being inferred from the ECG alone.
For UK practice, see the current NICE atrial fibrillation guideline NG196.
Common mistakes when reading an AF ECG
Calling every irregular rhythm AF
Look for atrial activity. MAT, frequent ectopy, variable atrial flutter and sinus arrhythmia can all create irregularity.
Calling every fast narrow-complex rhythm AF
First decide whether the rhythm is regular. A regular narrow-complex tachycardia has a different differential.
Looking for a perfectly flat baseline
Real ECGs contain noise, atrial activity and artefact. The useful question is whether there are consistent organised P waves, not whether the baseline is visually empty.
Ignoring QRS morphology
AF can coexist with bundle branch block, pre-excitation, ventricular ectopy, pacing or rate-related aberrancy. Finish the ECG.
Treating the machine interpretation as the diagnosis
Automated interpretation can be useful, but the trace and the patient still need clinical review.
How to present an AF ECG
A clear presentation might be:
“This is a 12-lead ECG showing an irregularly irregular rhythm with no consistent organised P waves, in keeping with atrial fibrillation. The ventricular rate is approximately X bpm. The QRS is narrow/broad, the axis is X, and there are X ST-T changes.”
Replace each X with what is actually present. If the patient is unstable, communicate the clinical urgency rather than spending time polishing the wording.
Quick visual comparison
Sinus rhythm: organised P waves + consistent P-to-QRS relationship.
Atrial fibrillation: no consistent organised sinus P waves + irregularly irregular ventricular response.
Atrial flutter: organised repetitive flutter activity; ventricular response may be regular or variable.
Multifocal atrial tachycardia: irregular rhythm but discrete P waves with multiple morphologies.
That comparison is more useful than memorising one “classic” AF picture because real ECGs vary.
Final takeaway
For atrial fibrillation ECG interpretation, remember rhythm → P waves → rate → QRS → rest of ECG → patient.
Do not diagnose AF because the heart is fast. Do not diagnose it because one interval looks irregular. Demonstrate the atrial and ventricular pattern, compare plausible mimics, and then put the ECG back into the clinical context.
Explore the SlideBites ECG learning library and the step-by-step ECG interpretation guide to practise the same framework across other rhythms.
